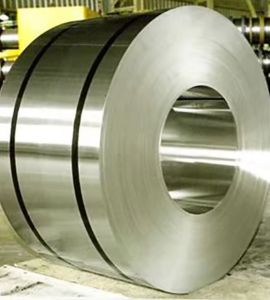

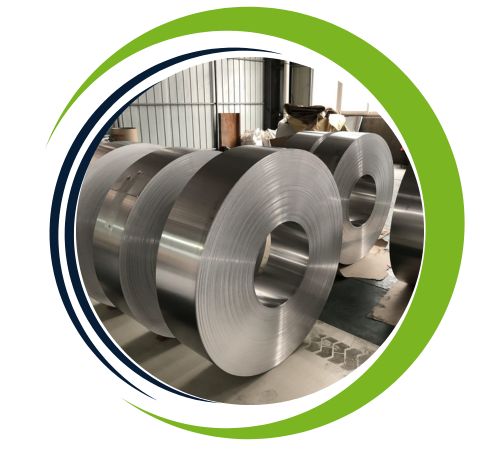

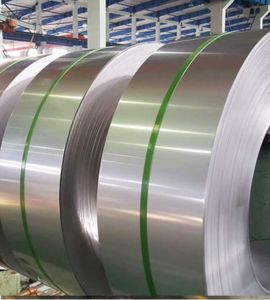

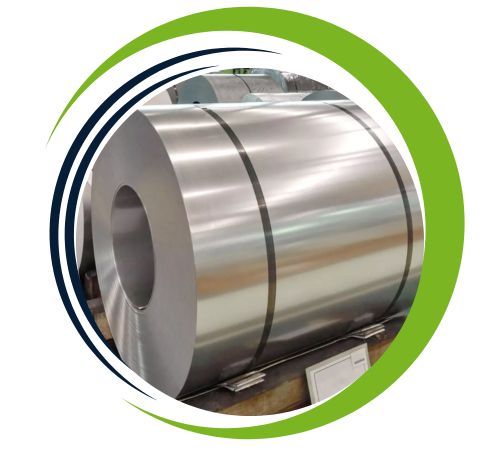

Vipul Sheets and Plates, Delhi, India, is a reliable maker and exporter of **Duplex Steel S31803 Coils and Slitting Coils** that provide long-lasting and corrosion-resistant materials for harsh and high-stress industrial conditions. Produced according to international standards, these coils are extensively applied in **oil & gas, marine engineering, chemical processing, desalination plants, structural fabrication**, and **paper & pulp industries**. Vipul maintains consistent quality, accurate slitting, and timely delivery in India and overseas.
**Duplex Steel S31803** (UNS S31803) is a nitrogen-enhanced duplex stainless steel with a well-balanced composition of **22% chromium, 5–6% nickel, and 3% molybdenum**, possessing the optimal combination of ferritic and austenitic steel properties. It has good resistance to **pitting, crevice corrosion, and chloride stress-corrosion cracking**, as well as **high mechanical strength and weldability**.
| Specifications | ASTM A240 / ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

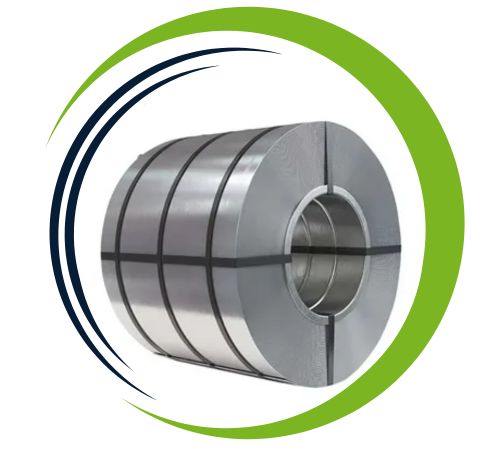

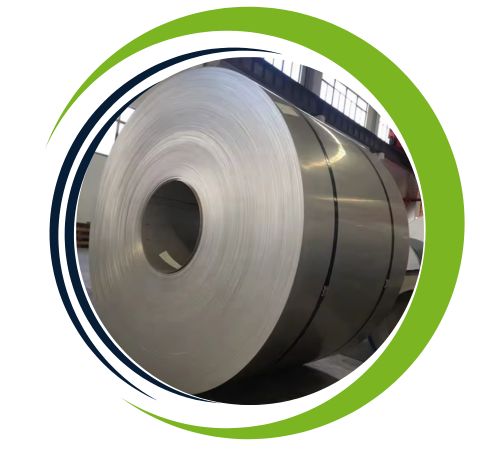

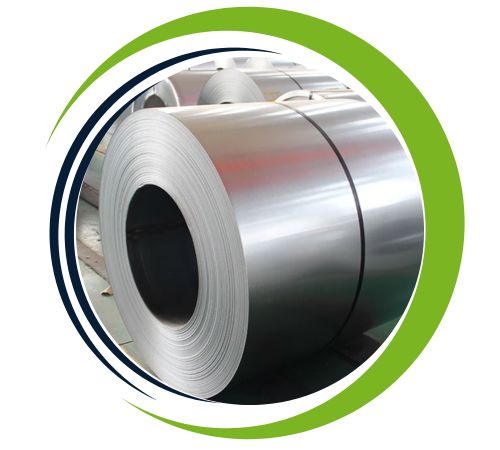

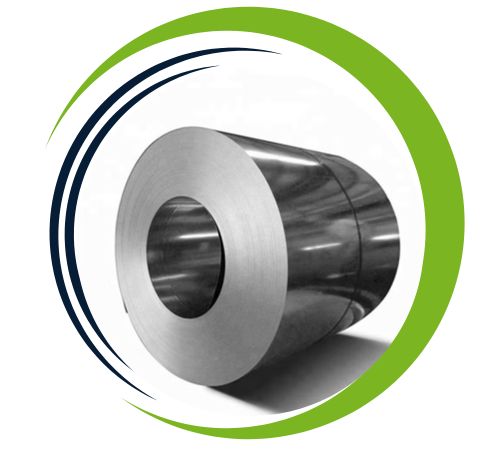

| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, hairline, sand blast, Brush, etching, Hot rolled coil (HR), Cold rolled coil (CR), SATIN (Met with Plastic Coated) etc |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form | Coils, Foils, Rolls, Plain Coil, Shim Coil, Strip |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| S31803 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
| Grades | EN | UNS | ISO |
| S31803 | 1.4462 | S31803 | 4462-318-03-I |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Vipul Sheets and Plates based in Delhi, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stocked Sizes | |
|---|---|
Size (in inches) | Size (in mm) |
.125″ | 3.18mm |
.134″ | 3.40mm |
.156″ | 3.96mm |
.187″ | 4.75mm |
.250″ | 6.35mm |
.312″ | 7.92mm |
.375″ | 9.53mm |
.500″ | 12.7mm |
.625″ | 15.9mm |
.750″ | 19.1mm |
.875″ | 22.2mm |
1″ | 25.4mm |
1.125″ | 28.6mm |
1.250″ | 31.8mm |
1.500″ | 38.1mm |
1.750″ | 44.5mm |
2″ | 50.8mm |
2.500″ | 63.5mm |
3″ | 76.2mm |
Duplex steel S31803 coil/slitting coils offer a unique combination of advantages, including high strength and good corrosion resistance, especially against pitting, crack corrosion and stress corrosion cracking Their dual phase design ensures good mechanical properties, e.g higher tensile and yield strengths compared to austenitic steels reduce them in good weldability and formability, and provide they are suitable for complex applications. Furthermore, their high fatigue and corrosion resistance makes them durable in harsh environments, such as chemical manufacturing, marine, and oil and gas industries, and allows them to use time long and reliable.
Yes, we offer custom sizes for Duplex Steel S31803 Coil/Slitting Coil to meet specific project needs. Our team at Vipul Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@vipulsheetsplates.com.
