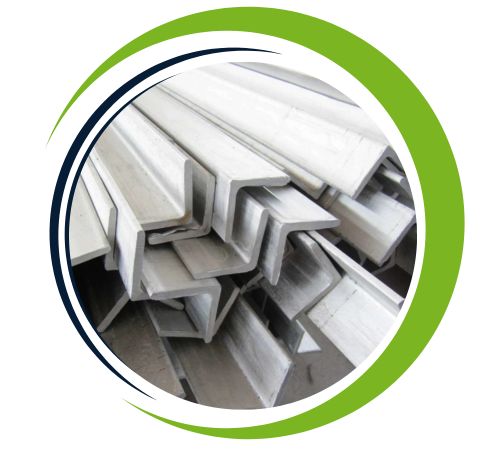

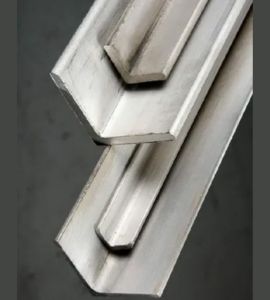

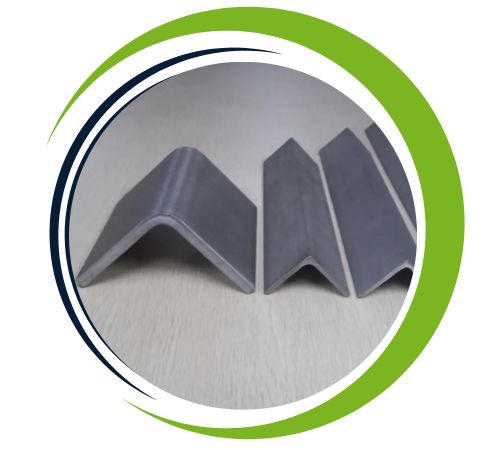

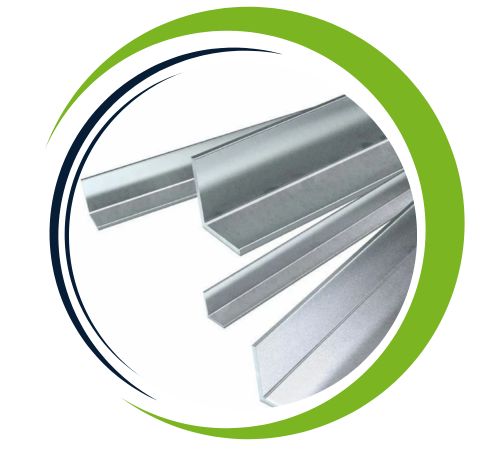

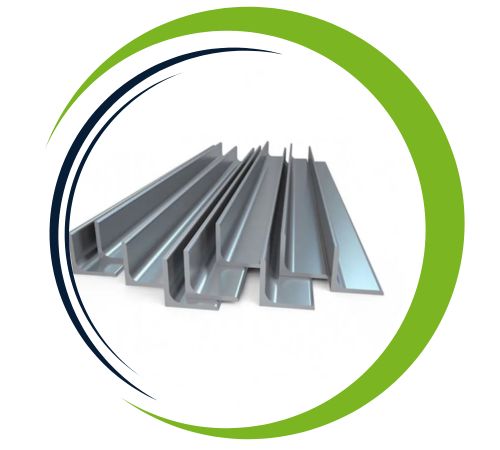

Vipul Sheets and Plates, headquartered in Delhi, India, is a prominent manufacturer and supplier of **Stainless Steel 17-4 PH Angles** for providing high-strength, corrosion-resistant solutions in demanding structural applications. With a reputation for supplying precision engineered stainless steel solutions, Vipul’s SS 17-4 PH Angles are specifically suited for applications in aerospace, chemical processing, nuclear, and marine environments. These angles are produced under strict industry specifications and are appreciated for their hardness, toughness, and superior mechanical properties. Vipul Sheets and Plates caters to a wide customer base in India and overseas markets with a strong emphasis on quality and reliability.
**Stainless Steel 17-4 PH** is a martensitic precipitation hardenable stainless steel with a composition of **chromium (15–17.5%)**, **nickel (3–5%)**, **copper (3–5%)**, and traces of **niobium**. It offers a distinct balance of **high strength**, **hardness**, and **moderate corrosion resistance**. The alloy can be heat treated to different hardness values, with superior mechanical properties in aged and annealed conditions. SS 17-4 PH also enjoys good oxidation resistance and stability under stress.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness: 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | P | Si | Ni | Cu | Fe | Mn | S | Cr | Cb+Ta |
| SS 17-4 PH | 0.07 | 0.04 | 1.0 max | 3.0 – 5.0 | 3.0 – 5.0 | Bal | 1.0 max | 0.03 | 15.0 – 17.5 | 5 X C / 0.45 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-4 PH | 1.4542 | S17400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Vipul Sheets and Plates based in Delhi, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 17-4 PH angle (Precipitation Hardening) surface offers several advantages. It combines high strength with excellent corrosion resistance, especially in harsh environments such as chemical and marine applications. Its excellent room and high temperature mechanical properties make it ideal for aerospace, the oil and gas industry and food processing. The alloy also exhibits improved stability and resistance to stress corrosion cracking. Moreover, 17-4 PH stainless steel is easily machined and can be heat-hardened, providing flexibility in a variety of industrial applications and providing durability and versatility it is reliable in complex materials.
