Vipul Sheets and Plates is a well-known manufacturer and supplier of Stainless Steel 13-8 PH Sheets and Plates, proudly based in Delhi, India. They’ve built a solid reputation for providing high-performance stainless steel materials that meet the needs of industries looking for exceptional strength, toughness, and resistance to corrosion. The 13-8 PH alloy is a precipitation-hardening stainless steel, specifically engineered for critical structural components in aerospace, defense, and high-stress industrial settings. Vipul is committed to precision manufacturing and upholding international quality standards, delivering sheets and plates that not only boast excellent mechanical properties but also offer outstanding fabricability and long-lasting performance.
When it comes to composition, Stainless Steel 13-8 PH Sheets and Plates typically contain 12.25–13.25% chromium, 7.5–8.5% nickel, and 0.9–1.35% aluminum, along with a low carbon content (maximum 0.05%) and trace amounts of molybdenum, manganese, and silicon. This alloy achieves remarkable strength and hardness through heat treatment while maintaining impressive toughness and resistance to stress corrosion cracking. Its mechanical properties are noteworthy, featuring tensile strength of up to 1310 MPa, yield strength exceeding 1170 MPa (in H1000 condition), and good ductility, making it perfect for demanding applications.
| Specifications | 1.4534.9 | UNS S13800 | AMS 5629 |
| Item: | Stainless Steel Plates (Hot rolled, cold rolled) |
| Standard: | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Surface: | The surface and finish of Stainless-Steel Plates: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Width: | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length: | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness: | 0.3~10.0mm |

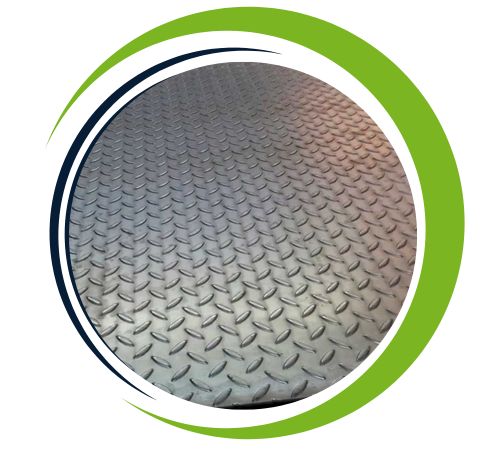

| Form: | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| End: | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Cr 12.25 – 13.23% | Ni 7.50 – 8.50% | Mo 2.00 – 2.50% | Al 0.90 – 1.35% | N 0.010% | |||||
| Mn 0.10% | Si 0.10% | C 0.05% | P 0.010% | S 0.008% |
| Tensile (UTS)N/mm² | 0.2% YieldN/mm² | Elongation(50.8mm) %) | HardnessHRc | Reductionof Area |
| 1965 | 1896 | 2 | 57 | 10 |
| Alloy | UNS Number | WERKSTOFF NR. |
| 13-8 PH | UNS S13800 | 1.4534 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 13-8 PH sheets and plates offer many benefits, including high strength, good corrosion resistance and outstanding hardness. Their ability to resist stress corrosion cracking makes them ideal for complex applications in the aerospace, marine, and nuclear industries. These sheets and plates are very durable, perform well in high-pressure and extreme-temperature environments, and maintain consistent mechanical properties They can be easily welded and machined, providing a variety of options a they are used for many purposes. By serving long life and reliability they are a cost-effective solution for critical applications that require precision and durability.
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| Stainless Steel 13-8 PH PH 1D – Hot rolled, heat treated, pickled Plate & Sheet | 2.4–12.7 | max. 2032 |

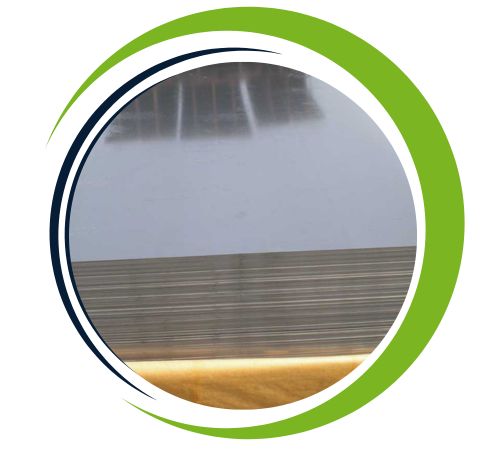

| 2R – Stainless Steel 13-8 PH Cold-rolled, bright-annealed Sheet & Plate | 0.05–1.50 | 3–649 |
| 2H – Stainless Steel 13-8 PH Work hardened Plate & Sheet | 0.05–1.50 | 3–630 |
| 2B – Stainless Steel 13-8 PH Cold rolled, heat treated, pickled, skin passed Sheet & Plate | 0.25–8.0 | max. 2032 |
| 2D – Stainless Steel 13-8 PH Cold rolled, heat treated, pickled Plate & Sheet | 0.4–6.35 | max. 1524 |
| 2E – Stainless Steel 13-8 PH Cold rolled, heat treated, mechanically descaled Sheet & Plate | 0.4–8.0 | max. 2032 |
| 2R – Stainless Steel 13-8 PH Cold rolled, bright annealed Plate & Sheet | 0.25–3.5 | max. 1524 |
| 2H – Stainless Steel 13-8 PH Work hardened Sheet & Plate | 0.4–6.35 | max. 1524 |

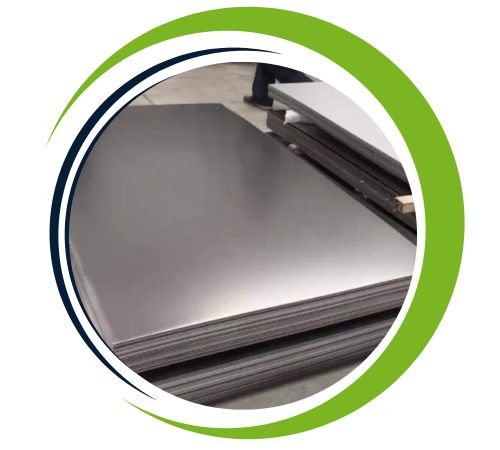

| Stainless Steel 13-8 PH Polished, brushed Plate & Sheet | 0.5–4.0 | max. 1524 |
Yes, we offer custom sizes for Stainless Steel 13-8 PH Sheet and Plates to meet specific project needs. Our team at Vipul Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@vipulsheetsplates.com.
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
Stainless Steel 13-8 PH Sheets and Plates find extensive use in aerospace components, parts for nuclear reactors, high-performance shafts, landing gear, structural supports, and fasteners. Their ability to retain strength under high stress and in corrosive environments makes them a great fit for marine, chemical, and petrochemical industries as well. Additionally, these sheets and plates are utilized in injection molding equipment, pressure vessels, and tooling components. With their excellent machinability, weldability, and resistance to fatigue and corrosion, 13-8 PH is truly an ideal choice for precision-engineered components in high-performance, safety-critical applications.
