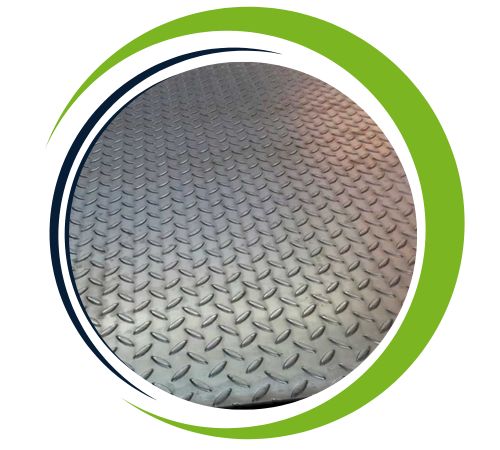

Located in Delhi, India, Vipul Sheets and Plates is a reputable producer and supplier of high-quality Monel K500 Sheets and Plates that are designed to function in some of the most demanding industrial settings. Monel K500 products are well-known for their remarkable strength, resistance to corrosion, and longevity, making them perfect for high-performance applications in the chemical, oil and gas, marine, and aerospace industries. Vipul Sheets and Plates guarantees precisely engineered materials with exceptional resistance to corrosion, erosion, and stress cracking that satisfy international standards. The company is a preferred source for Monel K500 sheet and plate solutions because of its dedication to quality, dependability, and on-time delivery.
Nickel (63%) and copper (27–33%) make up the majority of Monel K500 Sheets and Plates, with titanium (0.35–0.85%) and aluminium (2.3–3.15%) added for strength. Superior corrosion resistance is offered by this age-hardened alloy, especially in chemical and marine environments. With a tensile strength of 960 MPa, a yield strength of approximately 690 MPa, and good elongation (~20%), Monel K500 demonstrates exceptional mechanical qualities. It is perfect for demanding service conditions because it exhibits exceptional resistance to stress-corrosion cracking, erosion, and pitting, and it keeps its strength and toughness over a broad temperature range.
Specifications :ASTM B127 / ASME SB127, AMS 4544
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 4000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in mm) |
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .375″ | 9.53mm |
| .500″ | 12.7mm |
| .601″ | 15.9mm |
| .750″ | 19.1mm |
| .875″ | 22.2mm |
| 1″ | 25.4mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2″ | 50.8mm |
| 2.500″ | 63.5mm |
| 3″ | 76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Monel K500 Sheets and Plates offer several advantages, including exceptional corrosion resistance, particularly in seawater, alkaline and acidic environments. The addition of titanium and aluminum enhances the alloy’s strength, hardness, and resistance to stress corrosion cracking. Monel K500 also exhibits excellent fatigue and thermal-fatigue strength, making it ideal for high-stress applications. It provides excellent performance at both high and low temperatures, and its good weldability and formability make it suitable for complex shapes. These attributes make Monel K500 ideal for demanding industries such as aerospace, marine and chemical processing.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
In many different industries, Monel K500 Sheets and Plates are utilised extensively in corrosive and high-stress settings. Because of their exceptional resistance to saltwater corrosion, they are perfect for use in the marine industry in pump shafts, seawater valves, and propeller blades. They are utilised for drill collars, valves, heat exchangers, and other offshore equipment that is subjected to high pressure and sour gas in the oil and gas sector. Fasteners and structural elements needing high strength-to-weight ratios are used in aerospace applications. Furthermore, Monel K500 is appropriate for chemical processing facilities because it can withstand strong acids and alkalis, guaranteeing long-term dependability and efficiency.
