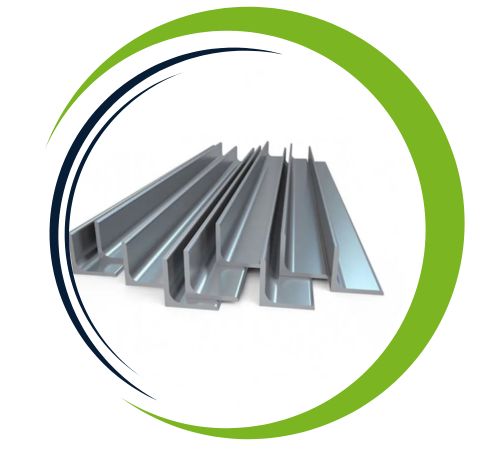

Vipul Sheets and Plates is a leading manufacturer and supplier of Monel K500 Angles in Delhi, India. Monel K500 is a nickel-copper alloy with a composition of added aluminum and titanium to achieve high strength and hardness. These angles of structure provide superior resistance to seawater, acids, and alkalis along with high mechanical strength up to sub-zero temperatures. At Vipul, we provide dimensional accuracy and quality checks as per international norms. Our Monel K500 Angles come in different sizes and thicknesses to meet different industrial requirements for marine, chemical, oil & gas, and aerospace industries.
Monel K500 contains about 63% nickel, 27–33% copper and minor additions of aluminium (2.3–3.15%) and titanium (0.35–0.85%). It possesses higher strength and hardness by age hardening. The alloy maintains tensile strength of up to 1100 MPa and yield strength of about 790 MPa and has excellent corrosion resistance. Monel K500 is resistant to stress-corrosion cracking and is good in both low and high temperatures. These mechanical characteristics render it suitable for load-carrying and corrosive conditions, particularly in offshore and industrial buildings.
| Specifications | : | ASTM B865 / ASME B865 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Monel K500 Angle | : | 5mm to 9mm |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, Architectural Angles, Equal Leg Angle, Unequal Leg Angle, Hot Rolled Steel Angle, Angle Bar |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel K500 | 0.25 max | 1.50 max | 0.5 max | 27.0-33.0 | 0.5 – 2 | 63.0 min | 0.010 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Vipul Sheets and Plates based in Delhi, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Monel K500 Angles offer several advantages, including exceptional strength, excellent corrosion resistance, and high performance in harsh environments. Their ability to withstand corrosion in seawater, acids, and alkalis makes them ideal for marine and chemical processing applications. With superior resistance to stress corrosion cracking, pitting, and oxidation, Monel K500 angles are durable in extreme conditions. They also maintain high mechanical strength at elevated temperatures, making them suitable for use in aerospace and industrial sectors. Additionally, their ease of fabrication and welding further enhances their versatility and reliability in structural and support applications.
Yes, we offer custom sizes for Monel K500 Angles to meet specific project needs. Our team at Vipul Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@vipulsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | JIS | GOST | BS | EN |
| Monel k500 | 2.4375 | N05500 | – | – | – | – | – |
Monel K500 Angles are extensively utilized in marine environments like pump shafts, seawater valves, and structural supports owing to their superior resistance to corrosion and biofouling. They are utilized for structural framing in acidic and alkaline processing units in the chemical and petrochemical industries. The oil and gas industry utilizes them in offshore equipment and drilling. Monel K500 Angles find their applications in aerospace components and nuclear reactors where reliability and strength are essential. Their magnetic–free nature makes them suitable for sensitive electronic equipment and subsea cable systems too.
