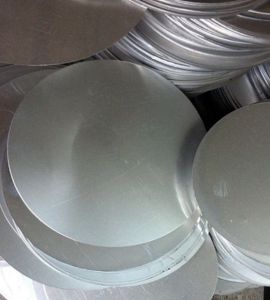

High-performance Monel 400 Circles, renowned for their remarkable mechanical strength and resistance to corrosion, are manufactured and supplied by Vipul Sheets and Plates, a reputable company based in Delhi, India. Monel 400 Circles are perfect for hydrocarbon, chemical, and marine processing applications because they are designed to withstand the harshest industrial settings. Vipul Sheets and Plates provides precisely cut, dimensionally accurate circles that are produced in accordance with global quality standards. Vipul Sheets and Plates provides dependable Monel 400 products to a wide range of industries in India and abroad, all while maintaining a strong commitment to customer satisfaction, on-time delivery, and superior product performance.
Nickel (63–70%) and copper (29–34%) make up the majority of Monel 400 Circles, with trace amounts of iron, manganese, silicon, and carbon. Excellent resistance to seawater, acids, and alkalis is provided by this solid solution alloy. Monel 400 has a yield strength of roughly 170–345 MPa, a tensile strength of 480–620 MPa, and an elongation of roughly 30–40%. The alloy exhibits good weldability and ductility and retains strength and toughness over a broad temperature range. Because of its mechanical and chemical characteristics, Monel 400 can be used in high-pressure and corrosive environments.
| Standard | ASTM B127, ASME SB127 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |
| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
| Property | Value |
|---|---|
| Tensile Strength | 70-95 ksi (485-655 MPa) |
| Yield Strength | 30 ksi (205 MPa) min |
| Elongation | 35% min in 2 inches (50 mm) |
| Hardness | Rockwell B70 max |
| Modulus of Elasticity | 28 x 106 psi (193 GPa) |
| Poisson’s Ratio | 0.31 |
UNS N04400 Circle offers several advantages, including outstanding corrosion resistance in marine and chemical environments, making it ideal for seawater applications. Its high strength and durability ensure long-lasting performance under stress and high temperatures. The alloy’s resistance to pitting, crevice corrosion, and stress corrosion cracking makes it highly reliable in harsh conditions. Monel 400 is also known for its excellent thermal conductivity and machinability, making it easy to fabricate. Its versatility extends across a variety of industries, including marine, chemical processing, and aerospace, ensuring it meets demanding requirements while offering superior performance.
Yes, we offer custom sizes for Monel 400 Circle to meet specific project needs. Our team at Vipul Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@vipulsheetsplates.com.
| Outer Diameter (OD) (mm) | Thickness (mm) | Size (mm) | Approximate Weight (kg) |
|---|---|---|---|
| 100 | 5 | 100 x 5 | 3.92 |
| 150 | 10 | 150 x 10 | 17.66 |
| 200 | 15 | 200 x 15 | 39.26 |
| 250 | 20 | 250 x 20 | 68.83 |
| 300 | 25 | 300 x 25 | 107.36 |
| 350 | 30 | 350 x 30 | 154.87 |
| 400 | 35 | 400 x 35 | 211.35 |
| 450 | 40 | 450 x 40 | 276.80 |
| 500 | 50 | 500 x 50 | 392.70 |
| Property | Value |
|---|---|
| Density | 8.80 g/cm³ |
| Melting Point | 1,455°C (2,651°F) |
| Electrical Resistivity | 0.49 µΩ·cm |
| Thermal Conductivity | 35.4 W/m·K |
| Thermal Expansion (25-100°C) | 13.4 µm/m·K |
| Specific Heat (at 25°C) | 0.385 J/g·K |
| Young’s Modulus | 193 GPa (28 x 10⁶ psi) |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
Applications needing corrosion resistance frequently use Monel 400 Circles, particularly in chemical processing and maritime settings. They are perfect for making heat exchangers, condensers, pump and valve parts, and piping systems in alkaline, acidic, and saltwater environments. They are utilised in the marine industry for fasteners, seawater valves, and propeller shafts. In order to handle corrosive fluids and gases, Monel 400 is also used in offshore drilling, oil refining, and power generation. In order to ensure long service life and dependability, these circles are also utilised in the food processing and pharmaceutical industries, where cleanliness and resistance to contamination are crucial.
