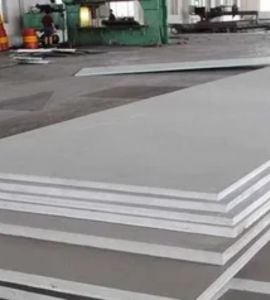

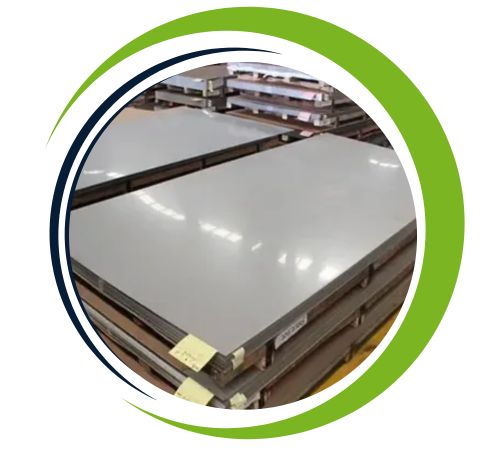

Vipul Sheets and Plates stands out as a top-notch manufacturer and supplier of Inconel 600 Sheets and Plates, proudly based in Delhi, India. The company is well-regarded for its high-quality nickel-chromium alloy products, delivering materials that boast impressive resistance to both heat and corrosion. The Inconel 600 Sheets and Plates from Vipul are commonly used in settings where high temperatures and corrosive substances are a concern. These products are crafted in line with international standards and cater to a range of industries, including chemical processing, aerospace, heat treating, and nuclear power. Vipul Sheets and Plates has earned a reputation for its commitment to quality, timely delivery, and a customer-centric approach.
Inconel 600 Sheets and Plates are made up of roughly 72% nickel, 14–17% chromium, and 6–10% iron. This unique blend gives them outstanding resistance to oxidation, corrosion, and high-temperature conditions. The alloy maintains impressive strength and stability across a broad temperature spectrum. In terms of mechanical properties, it has a tensile strength ranging from about 80,000 to 100,000 psi, a yield strength of around 35,000 to 45,000 psi, and an elongation of approximately 30 to 40%. Inconel 600 is also known for its good weldability and workability, making it a great choice for both structural and pressure-containing applications in demanding environments.

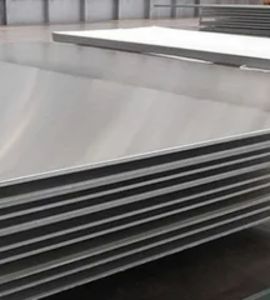

| Specifications | ASTM B168 / ASME SB168 |
| Thickness | 4mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

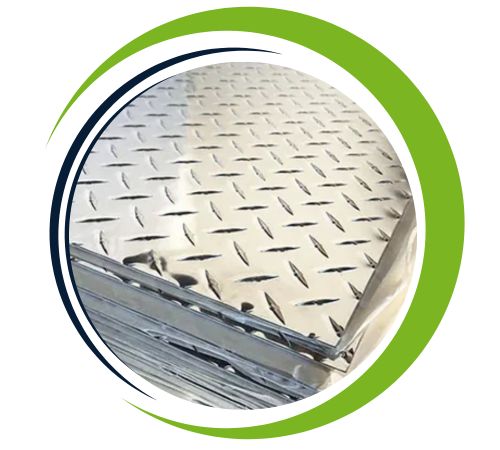

| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hairline, sand blast, Brush, etching, etc |

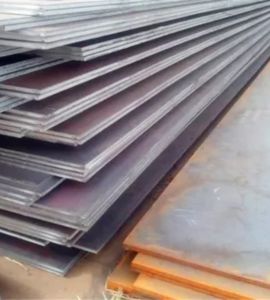

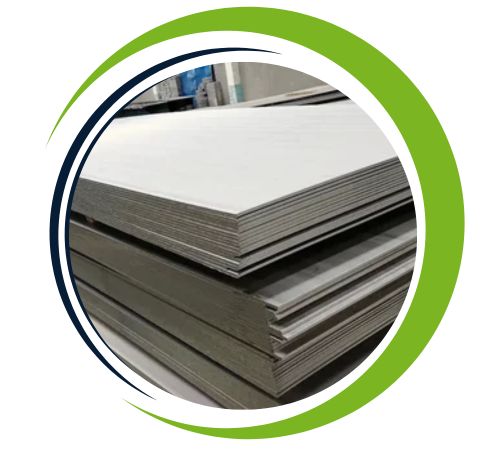

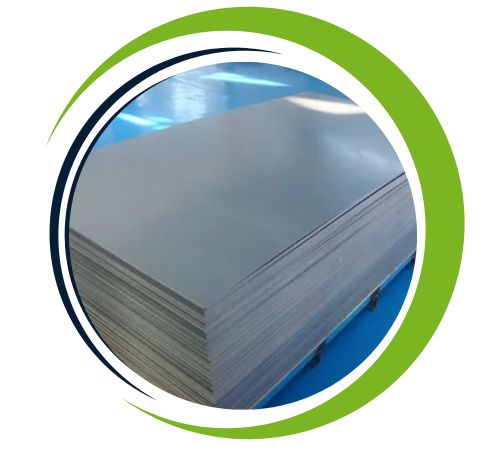

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
| BS | En | No | AFNOR | ||||
| Inconel 600 | N06600 | NA 13 | NiCr15Fe | 2.4816 | NC15FE11M | МНЖМц 28-2,5-1,5 | NCF 600 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Vipul Sheets and Plates based in Delhi, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 600 sheets and plates offer several advantages, making them ideal for high-performance applications. They exhibit excellent resistance to oxidation, carburization, and corrosion, especially at elevated temperatures, ensuring durability in harsh environments. With high tensile strength and excellent weldability, Inconel 600 is highly reliable in aerospace, chemical, and power generation industries. It also maintains stability and strength in extreme thermal conditions, making it suitable for use in heat exchangers, gas turbines, and furnace components. Additionally, Inconel 600’s resistance to chloride-ion stress corrosion cracking enhances its longevity and performance.
Yes, we offer custom sizes for Inconel 600 Sheets and Plates to meet specific project needs. Our team at Vipul Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@vipulsheetsplates.com.
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |
| Polished, brushed | 0.5–4.0 | max. 1524 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm |
Inconel 600 Sheets and Plates find extensive use in industries that require reliable performance under extreme heat and corrosive conditions. In the chemical processing sector, they are employed in heat exchangers, evaporators, and reaction vessels that come into contact with acids and chlorides. The aerospace industry relies on them for engine components and exhaust liners, thanks to their strength at elevated temperatures. Additionally, Inconel 600 is perfect for furnace parts, thermocouple sheaths, and components in nuclear reactors, particularly where resistance to chloride-ion stress corrosion cracking is crucial. Their versatility and durability make them a go-to material for critical, high-performance applications.
