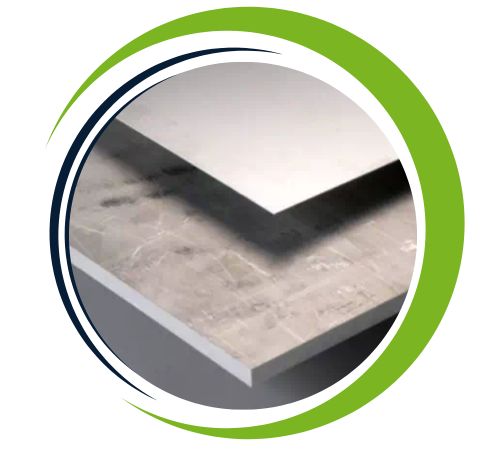

Vipul Sheets and Plates is a top-notch manufacturer and supplier located in Delhi, India, specializing in high-quality Incoloy Sheets and Plates. These products are designed to meet the demands of industries that require outstanding performance in high-temperature and corrosive settings. Renowned for their precision, reliability, and commitment to global standards, Vipul delivers Incoloy products that cater to crucial sectors like petrochemical, marine, power generation, and aerospace. Crafted from premium nickel-iron-chromium alloys, these sheets and plates boast excellent resistance to oxidation, carburization, and stress-corrosion cracking. With state-of-the-art infrastructure and a team of skilled professionals, Vipul guarantees consistent quality, timely delivery, and tailored solutions.
Incoloy Sheets and Plates are derived from a family of nickel-iron-chromium alloys, typically including grades such as Incoloy 800, 825, and 925. Their usual composition consists of Nickel (30–46%), Chromium (19–23%), and Iron (the balance), with additional elements like Molybdenum, Copper, and Titanium varying by grade. Incoloy is known for its impressive tensile strength (generally around 500–750 MPa) and yield strength (200–400 MPa), along with remarkable resistance to scaling, oxidation, and corrosion at high temperatures. These mechanical and chemical properties make Incoloy an excellent choice for long-term use in demanding industrial environments that experience high stress and heat.
| Specifications: | ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443 |
| Thickness: | 4 mm To 100 mm |
| Length: | 2000mm, 2438mm, 3000mm, 5800mm, 6000mm,12000mm，or as required |
| Width: | 40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm,or as required |
| Grade | 800/ 800H/ 800HT/ 825 |
| Application | Building industry,architectural decoration,elevators,building doors,panels and so on. |
| Standard: | ASTM，AISI，JIS，GB， DIN，EN |
| Surface: | BA，2B，NO.1，NO.4，4K，HL，8K |
| Certification: | ISO, SGS，BV |

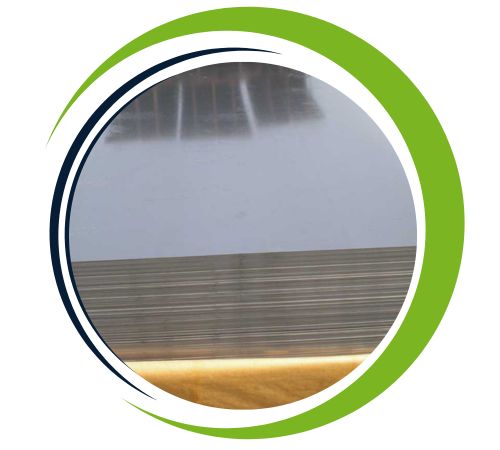

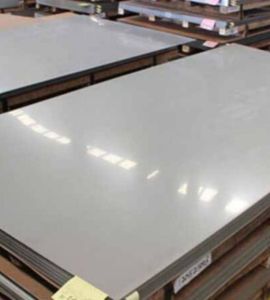

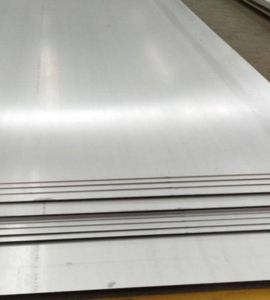

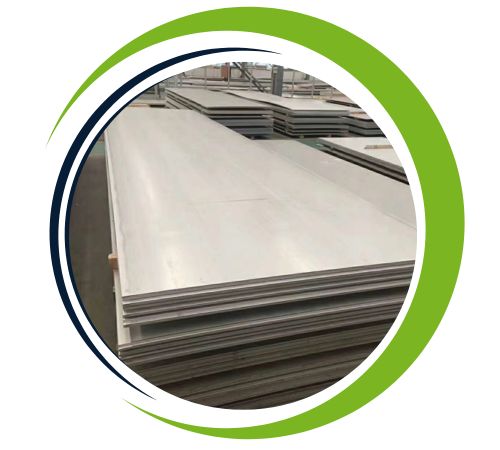

| Technique: | Cold Rolled Hot Rolled |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

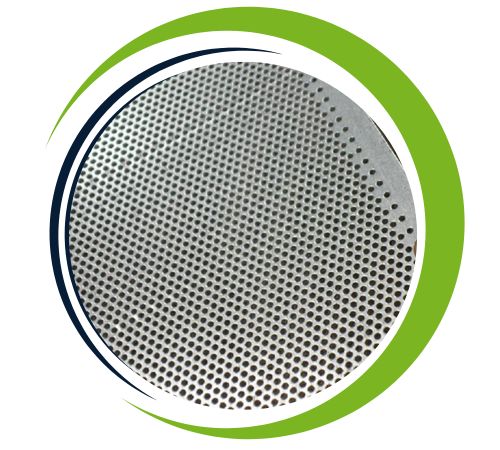

| Form | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Sheet | ||
|---|---|---|---|---|---|---|
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
| Plate Thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN | OR |
|---|---|---|---|---|---|---|---|---|
| Incoloy 800 | 1.4876 | N08800 | ЭИ670 | Z8NC32-21 | NCF 800 | NA 15 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 825 | 1.4876 | N08825 | 协袩703 | NFE30C20DUM | NCF 825 | NA 16 | NiCr21Mo | XH38BT |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Incoloy Sheets and Plates offer several advantages, including excellent resistance to oxidation, carburization, and corrosion in high-temperature and aggressive environments. Their superior strength and durability make them ideal for use in industries such as chemical processing, power generation and aerospace. Incoloy alloys also exhibit excellent resistance to thermal-fatigue and stress-corrosion cracking, ensuring long-term performance. The materials are highly resistant to acidic and alkaline solutions, providing reliable service in harsh environments. Additionally, Incoloy Sheets and Plates offer good weldability and formability, making them versatile for various applications requiring durability, high strength, and heat resistance.
| Sheet & Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |

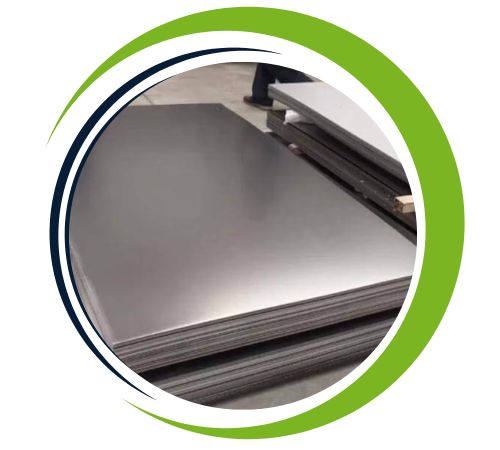

| Polished Sheet (not brushed) | 11–24 | 60 |
| Temper rolled Sheet Mexinox only | 13–29 | 48 |
Incoloy Sheets and Plates find applications across a variety of industries where strength and resistance to heat and corrosion are critical. In the petrochemical and chemical sectors, they are utilized in heat exchangers, reactors, and process piping that are exposed to acidic and oxidizing conditions. In the marine industry, Incoloy is perfect for saltwater applications and offshore platforms. Power plants incorporate them in superheaters and boiler components. The aerospace and nuclear industries appreciate Incoloy for its stability during thermal cycling. Its versatility and dependability make it a go-to material for structural and pressure-retaining applications in extreme conditions.
